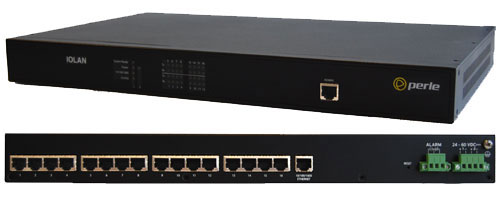

IOLAN SDSC LDCKonsolenserver
für Telekommunikationseinrichtungen NEBS-Zertifiziert
- 8, 16 und 32 serielle Ports auf RJ45 - über Software wählbar RS232/422/485
- Dualer Spannungseingang im Bereich 18 - 72 VDC ( 48 VDC Nennspannung )
-
Zertifiziert gemäß NEBS Level 3 ( SR-3580 ),
GR-1089-CORE, GR-63-CORE - Erweiterte Sicherheit einschließlich TACACS- und RADIUS-Authentifizierung
- Dual 10/100/1000 Ethernet mit Redundant Path Technologie
Techniker und Projektmanager von Telekommunikationseinrichtungen benötigen eine kostengünstige Seriell-zu-Ethernet-Lösung, um Netzwerkeinrichtungen zu überwachen und zu verwalten, die häufig in unbesetzten Datencentern, entlegenen POP-Standorten und Zweigstellen installiert sind. IOLAN SDSC LDC Konsolenserver sind zertifiziert, um die im Telcordia Network Equipment Building Standard (NEBS) Level 3 spezifizierten strengen Telekommunikationsumgebungen gerecht zu werden.
IOLAN SDSC LDC Konsolenserver eignen sich besonders für:
- Techniker und Projektmanager im Bereich Telekommunikation, die eine leistungsfähige Seriell-zu-Ethernet-Lösung für den Zugriff auf serielle Konsolenports in Netzwerkeinrichtungen benötigen
- Telekommunikationseinrichtungen, die eine Lösung für das Out-of-Band-Management mit erweiterten Sicherheitsfunktionen und Zertifizierung gemäß NEBS Level 3 benötigen
Warum IOLAN SDSC LDC Konsolenserver die bevorzugte Wahl sind:
- Von anerkannten Prüfanstalten gemäß NEBS Level 3 zertifiziert
- Unterstützt den breiten Spannungsbereich von 18 – 72 VDC, der in 48-VDC-Telekommunikationseinrichtungen erforderlich ist
- Dualer Spannungseingang für fehlertoleranten Zugriff auf Gleichstrom
- Erweiterte Sicherheitsmerkmale
- TACACS+ und RADIUS für zentralisierte Authentifizierung, Autorisierung und Accounting
- Zwei-Faktor-Authentifizierung wie SecureID von RSA
- HTTPS, SSL/TLS, SSH (AES, 3DES) Sitzungsverschlüsselung
- Tastenanschlag- und Datenprotokollierung
- Serielle Cisco RJ45-Port-Pinbelegung ermöglicht Anschluss an Cisco/Sun-Konsolenports unter Verwendung gängiger serieller CAT5-Rolloverkabel
- 400 Mhz, 750 MIPS, 32 bit Prozessor mit integriertem Hardware-Verschlüsselungsprozessor für den besten verfügbaren Durchsatz
- EasyPort Web – Zugriff auf serielle Konsolenports über einen Java-fähigen Internetbrowser
- Java-freier Browserzugriff auf serielle Remote-Konsolenports über Telnet und SSH
- Lebenslange Gewährleistung – Der beste Investitionsschutz, den es gibt
Software Features - IOLAN SDSC LDC Konsolenserver
Serial Port Access
- Connect directly using Telnet / SSH by port and IP address
- Connect with EasyPort menu by Telnet / SSH
- Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
- Java-free browser access to remote serial console ports via Telnet and SSH
- Ports can be assigned a specific IP address ( aliasing )
- Multisession capability enables multiple users to access ports simultaneously
- Multihost access enables multiple hosts/servers to share serial ports
Accessibility
- In-band (ethernet) and out-of-band (dial-up modem) support
- Dynamic DNS enables users to find a console server from anywhere on the Internet
- Domain name control through DHCP option 81
- IPV6 and IPV4 addressing support
Availability
Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
- SSH v1 and v2
- PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
- SSL Server and SSL client mode capability
- SSL Peer authentication
- IPSec VPN : NAT Traversal, ESP authentication protocol
- SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
- SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
- Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
- Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
- Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
- X.509 Certificate verification: RSA, DSA
- Certificate authority (CA) list
- Local database
- RADIUS Authentication, Authorization and Accounting
- TACACS+ Authentication, Authorization and Accounting
- LDAP, NIS, Kerberos Authentication
- RSA SecureID-agent or via RADIUS Authentication
- SNMP v3 Authentication and Encryption support
- IP Address filtering
- Disable unused daemons
- Active Directory via LDAP
Terminal Server
- Telnet
- SSH v1 and v2
- Rlogin
- Auto session login
- LPD, RCP printer
- MOTD - Message of the day
Serial machine to Ethernet
- Tunnel raw serial data across Ethernet - clear or encrypted
- Raw serial data over TCP/IP
- Raw serial data over UDP
- Serial data control of packetized data
- Share serial ports with multiple hosts/servers
- Virtual modem simulates a modem connection - assign IP address by AT phone number
- Virtual modem data can be sent over the Ethernet link with or without SSL encryption
- TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
- TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
- RFC 2217 standard for transport of serial data and RS232 control signals
- Customizable or fixed serial baud rates
- Plug-ins allow customer or Perle provided plug-ins for special applications
- Software Development Kit ( SDK ) available
- Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
- ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
- Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
- Sun / Oracle Solaris Break Safe
- Local port buffer viewing - 256K bytes per port
- External port buffering via NFS, encrypted NFS and Syslog
- Event notification
- Clustering - central console server enables access ports across multiple console servers
- Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
Remote Access
Dial, direct serial
PPP, PAP/CHAP, SLIP
HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update
Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
- Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
- Microsoft IPSEC VPN Client ( native to Windows Vista )
- Cisco routers with IPSEC VPN feature set
- Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
- SNMP V3 - read and write, Perle MIB
- Syslog
- Perle Device Manager - Windows based utility for large scale deployments
- Configurable default configuration
- Installation Wizard
- Set a Personalized Factory Default for your IOLANs
Protocols
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP
Hardware Specifications - IOLAN SDSC LDC Console Servers
CPU
Processor
MPC8349E, 400 Mhz, 750 MIPS
Memory
RAM MB
SDS8C LDC
64
SDS16C LDC
64
SDS32C LDC
64
Flash MB
SDS8C LDC
16
SDS16C LDC
16
SDS32C LDC
16
Interface Ports
Number of Serial Ports
SDS8C LDC
8
SDS16C LDC
16
SDS32C LDC
32
Serial Port Interface
Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex
Sun / Solaris
Sun / Oracle ‘Solaris' Safe - no break signal
sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds
50bps to 230Kbps with customizable baud rate support
Data Bits
Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity
Odd, Even, Mark, Space, None
Flow Control
Hardware, Software, Both, None
Serial Port Protection
15Kv Electrostatic Discharge Protection (ESD)
Local Console Ports
RS232 on RJ45 with DB9 adapter (provided)
Network
- Dual 10/100/1000-base TX Ethernet RJ45
- Software selectable Ethernet speed 10/100/1000, Auto
- Software selectable Half/Full/Auto duplex
Failsafe Alarm Relay
3A@24v DC. Normally open contacts closed by IOLAN when active and opened upon alarm condition or power failure
Power
Dual Power Supply
2 x Pluggable Terminal Blocks with screw terminals accommodating 28 - 12 AWG wire sizes
Nominal Input Voltage
24v DC / 48v DC
Input Voltage Range
18 - 72v DC
Current Consumption @ 18v DC (Amps)
SDS8C LDC
0.4
SDS16C LDC
0.55
SDS32C LDC
0.85
Current Consumption @ 24v DC (Amps)
SDS8C LDC
0.3
SDS16C LDC
0.4
SDS32C LDC
0.65
Current Consumption @ 48v DC (Amps)
SDS8C LDC
0.2
SDS16C LDC
0.25
SDS32C LDC
0.35
Current Consumption @ 72v DC (Amps)
SDS8C LDC
0.15
SDS16C LDC
0.18
SDS32C LDC
0.25
Typical Power Consumption (Watts)
SDS8C LDC
11
SDS16C LDC
13
SDS32C LDC
18
Chassis Ground
Grounding screw for a #10 ring terminal
Indicators
LEDs
- Power
- System Ready
- Network Link activity
- Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output (BTU/HR)
SDS8C LDC
37.6
SDS16C LDC
44.4
SDS32C LDC
61.5
MTBF (Hours)
SDS8C LDC
126,302 Hours
SDS16C LDC
105,495 Hours
SDS32C LDC
82,402 Hours
Calculation model based on MIL-HDBK-217-FN2 @ 30°C
Operating Temperature
-40°C ambient for 16 hours and +70°C ambient for 16 hours without use of fans
Storage Temperature
-40°C to 85°C, (-40°F to 185°F)
Humidity
5 to 95% (non condensing) for both storage and operation.
Case
SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating
IP30
Mounting
- 1U - 19' rack, front and rear mounting hardware included
- DIN Rail mounting kit optional
Product Weight and Dimensions
Weight
SDS8C LDC
3.16 kg
SDS16C LDC
3.18 kg
SDS32C LDC
3.36 kg
Dimensions
1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Weight
SDS8C LDC
3.96 kg
SDS16C LDC
3.98 kg
SDS32C LDC
4.16 kg
Shipping Dimensions
59 x 36 x 9 (cm), 23 x 14 x 3.5 (in)
Regulatory Approvals
Network Equipment Building Systems (NEBS)
- SR-3580 NEBS Level 3
- GR-1089-CORE : NEBS EMI and Safety
- GR-1089-CORE per Verizon VZ.TPR.9205 and ATT-TP-76200
- GR-63-CORE: NEBS Physical Protection
- GR-63-CORE / ANSI T1.319 per Verizon VZ.TPR.9305 and ATT-TP-76200
Emissions
- Power Line conducted: IEC 61850-3 Sec 5.8
- CISPR 32:2015/EN 55032:2015 (Class A)
- EN55011 (CISPR11)
- Telecom Line conducted: IEC 61000-6-4
- Radiated: IEC 61850-3 Sec 5.8
- CISPR 24:2010/EN 55024:2010
- EN61000-3-2 : 2010 Limits for Harmonic Current Emissions
- EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
EMC Interface Immunity
- IEC 61850-3 (substations)
- IEEE 1613 (substations) (C37.90.x)
- Applies to all ports, signal and power connections
- ESD: IEC61000-4-2, 8Kv Contact / 15Kv Air
- Radiated RFI: IEC61000-4-3, 20 V/m (80M-1G)
- Fast Transients / Burst: IEC61000-4-4, 4Kv Mains , I/O
- Surge : IEC61000-4-5
- 4Kv AC line to Gnd, 2Kv AC Line to Line,
- 2Kv DC line to Gnd, 1 Kv DC Line to Line,
- RS232 = balanced, ethernet = unbalanced
- Conducted RF: IEC61000-4-6, 10 Vrms
- Magnetic Field: IEC61000-4-8, 100 A/m, 1000 A/m (1 sec)
- Dips and Interrupts: IEC61000-4-11, Criteria A/B/C
- Oscillatory: EN61000-4-12, 2.5Kv common and differential mode
- Low Frequency conducted: EN61000-4-16, 30V 60s, 300V 1s,15Hz-150KHz @ level 3
Safety
- UL/EN/IEC 62368-1
- CAN/CSA C22.2 No. 62368-1
- IEC 60950-1(ed 2); am1, am2 and
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- NEBS GR-1089-CORE ISSUE 4 (Level 3, Type 2 and Type 4)
Other
- Reach, RoHS and WEEE Compliant
Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
- CCATS - G168387
- ECCN - 5A992
- HTSUS Number: 8517.62.0020
- Perle Limited Lifetime warranty
IOLAN RJ45 Serial Connector Pinout
Pinout
1
2
3
4
5
6
7
8
Direction
out
out
out
N/A
N/A
in
in
in
EIA-232
RTS
DTR
TxD
GND
GND
RxD
DSR
CTS
EIA-422
TxD+
N/A
TxD-
GND
GND
RxD+
N/A
RxD-
EIA-485 Full Duplex
TxD+
N/A
TxD-
GND
GND
RxD+
N/A
RxD-
EIA-485 Half Duplex
DATA+
N/A
DATA-
GND
GND
N/A
N/A
N/A
Application Diagrams
TCP

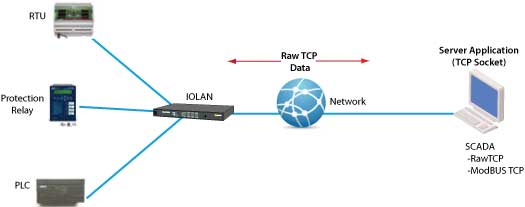

RAW TCP Sockets
Eine Raw-TCP-Socket-Verbindung, die vom Seriell Ethernet Gerät oder vom entfernten Host/Server initiiert werden kann. Das kann entweder auf Punkt-zu-Punkt-Basis oder gemeinsam erfolgen, d. h. ein serielles Gerät kann von mehreren Geräten gemeinsam verwendet werden. TCP-Sitzungen können entweder von der TCP-Server-Anwendung oder vom Perle IOLAN Seriell-zu-Ethernet-Adapter gestartet werden.
.jpg)
UDP
Raw-UDP-Sockets
Für den Einsatz in UDP-gestützten Anwendungen können Perle IOLANs die Daten serieller Geräte zum Transport mit UDP-Paketen entweder auf Punkt-zu-Punkt-Basis oder zur gemeinsamen Benutzung durch mehrere Geräte konvertieren.
Konsolenmanagement
Konsolenmanagement
Für den Zugang zu entfernten Konsolen-Ports bei Routern, Switches usw. ermöglichen die Perle IOLANs den Administratoren, Über ein In-Band-Reverse-Telnet/SSH oder Out-of-Band durch DFÜ-Modems sicher auf die RS232-Ports zuzugreifen. Es sind IOLAN-Modelle von Perle mit integrierten Modems erhältlich.
COM/TTY
Anschluss seriell-gestützter Anwendungen mit COM/TTY-Port-Treiber

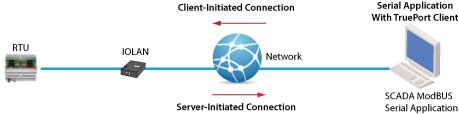

Serielle Ports können über virtuelle COM-Ports an Netzwerkserver oder Workstations angeschlossen werden, auf denen die TruePort-Software von Perle ausgeführt wird. Sitzungen können entweder vom Perle IOLAN oder von TruePort gestartet werden.
.jpg)
Tunneling
Serielles Tunneling zwischen zwei seriellen Geräten
Serielles Tunneling ermöglicht es Ihnen, eine Ethernet-Verbindung zu einem seriellen Port von einem IOLAN zum anderen IOLAN herzustellen. Beide seriellen Ports der IOLANs müssen für das serielle Tunneling konfiguriert werden (normalerweise wird ein serieller Port als Tunnel-Server und der andere serielle Port als Tunnel-Client konfiguriert).
.jpg)
Virtuelles Modem
Virtuelles Modem (Ethernet Modem)
Vmodem ermöglicht es dem Perle IOLAN, eine Modemverbindung zu simulieren. Nach dem Anschluss an den IOLAN wird eine Modemverbindung initiiert, und der IOLAN startet eine TCP-Verbindung zu einem anderen IOLAN, der mit dem seriellen Port eines virtuellen Modems konfiguriert wurde, oder zu einem Host, auf dem eine TCP-Anwendung ausgeführt wird.
Klicken Sie eine Artikelnummer um Bestellinformationen einzusehen.
Produktbild
Beschreibung
Netzkabel & Artikelnummer
IOLAN SDS8C LDC Utility Terminal Server - 8 x RJ45 serial ports, 24/48 VDC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard, NEBS Level 3 Certified
IOLAN SDS16C LDC Utility Terminal Server - 16 x RJ45 serial ports, 24/48 VDC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard, NEBS Level 3 Certified
IOLAN SDS32C LDC Utility Terminal Server - 32 x RJ45 serial ports, 24/48 VDC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard, NEBS Level 3 Certified
Related Accessories
Accessory Image
Accessory Description
Part No.
DBA0013C - RJ-45F to DB-25M straight-thru (DCE) adapter #1100290-10 for modems on IOLAN. View Pinout
DBA0020C - RJ-45F to DB-9F crossover (DTE) adapter #1100300-10 for Perle serial console ports with Sun/Cisco pinout. View Pinout
C Model Kit Includes: (1) RJ-45 to DB-25 DTE Male adapter, (1) RJ-45 to DB-25 DCE Male adapter, (1) RJ-45 to DB-25 DTE Female adapter, (1) RJ-45 to DB-9Male DTE adapter, (1) RJ-45 to DB-9 Female DTE adapter and (1) RJ45M-RJ45F Sun/Cisco crossover adapter.
DBA0023C - RJ-45F to DB-9M straight-thru (DCE) adapter #1100350-11 for modems on IOLAN with Sun/Cisco pinout. View Pinout
DBA0031C 8pck - 8 pack of #04007060 RJ45M to RJ45F Sun/Cisco crossover adapter for IOLAN. View Pinout
DBA0010C 8pck - 8 pack of # 04007010 RJ45F to DB-25F (DTE) crossover adapter for IOLAN. View Pinout
DBA0011C 8pck - 8 pack of #04007020 RJ45F to DB25M (DTE) crossover adapter for IOLAN. View Pinout
DBA0020C 8pck - 8 pack of #04007040 RJ45F to DB9F (DTE) crossover adapter for IOLAN. View Pinout
DBA0021C 8pck - 8 pack of #04007050 RJ45F to DB9M (DTE) crossover adapter for IOLAN. View Pinout
DBA0013C 8pck - 8 pack of #04007030 RJ45F to DB25M Straight-thru adapter for modems on IOLAN. View Pinout
DIN Rail Mounting Kit for select IOLAN Rack models
8 Port Terminal/Device/Console Servers - Express Replacement
8 Port Terminal/Device/Console Servers - Express Replacement French
16-18 Port Terminal/Device/Console Servers - Express Replacement
16-18 Port Terminal/Device/Console Servers - Express Replacement French
32-34 Port Terminal/Device/Console Servers - Express Replacement
32-34 Port Terminal/Device/Console Servers - Express Replacement French
