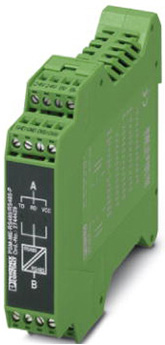

PSM-ME-RS485/RS485-P Repeater
RS485 zu RS485 Repeater
- Verstärken RS485-Signale bis zu 1,2 km
- Erweitern einen RS-485-Bus um 32 Knoten
- Übertragungsraten bis 1,5 Mbit/s
- 3-Wege-Isolation zwischen allen Schnittstellen
Verstärken Sie RS-485-Signale mit dem PSM-ME-RS485 Repeater, um lange Distanzen abzudecken. Indem Sie verschiedene Spannungsleitungen für Daten- und Steuersignale verwenden, überwinden RS-485-Repeater die Beschränkungen von standardmäßigen seriellen Ports. Damit können Sie einen RS-485-Bus um 1,2 km und 32 Knoten vergrößern. Außerdem schützt die 3-Wege-Isolation Geräte vor transienten Überspannungen und Erdungsschleifen in der Datenleitung.
Der PSM-ME-RS485 Repeater wurde für die hohen Anforderungen von Feldbussystemen entwickelt. Das Gerät kann an der Wand montiert und mit Wechselstrom betrieben werden oder in die standardmäßigen Tragschienen eingesteckt werden, die mit 24 V Gleichspannung oder Wechselspannung versorgt werden.
Der PSM-ME-RS485 Repeater kann in allen gängigen 2-Wege-Bussystemen verwendet werden: Modbus, RACKBUS (Endress &Hauser), SUBCONET-K (Moeller), UNI-TELWAY (Telemecanique), DANBUS (Danfoss), RS-BUS (Landis & Staefa), NET 2000 (B&R), INSUM (ABB), J-BUS (Merlin Gerin), ET-WAY (Jetter), S-BUS (SAIA) und ungefähr 60 weiteren unternehmensspezifischen Bussystemen.
Für die Potentialtrennung und die Steigerung der Reichweite in 2-poligen RS-485-Bussystemen ist der PSM-ME-RS485 Repeater die optimale Lösung.
RS485 Repeater Features
- Unterstützt alle gängigen 10/11-Bit UART-Datenformate
- Automatischer Sende-/Empfangswechsel
- Übertragungsgeschwindigkeiten von 1,2 Kb/s bis zu 1,5 Mb/s
- Integrierte und verbindungsfähige Klemmenwiderstände
- Qualitativ hochwertige 3-Wege-Isolation zwischen allen Schnittstellen
- Integrierter Überspannungsschutz mit transienter Entladung auf die Tragschiene
- Versorgungsspannung von 24 V Gleichstrom oder Wechselstrom, um sich für den Schaltschrank zu eignen
- Steckschraubklemmleisten
- Platzsparendes dünnes Gerät mit 22,5 mm
- Schiffbauzulassung nach DNV
Serial interface
Interface 1
RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
Operating mode
Semi-duplex
Connection method
Pluggable screw connection
File format/coding
UART (11/10 bit switchable; NRZ)
Data direction switching
Automatic control, min. station response time 1 bits
Transmission medium
2-wire twisted pair, shielded
Transmission length
≤ 1200 m (depends on transmission speed, bus system and cable type)
Cascadability
- 9 (4,8 ... 93,75 kbps)
- 8 (115.2 kbps)
- 7 (136 kbps)
- 6 (187.5 kbps)
- 5 (375 ... 1500 kbps)
Termination resistor
- 390 Ω
- 180 Ω
- 390 Ω (Can be connected)
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Protocols supported
transparent protocol
Serial transmission speed
1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 75 / 93.75 / 115.2 / 136 / 187.5 / 375 / 500 / 1500 kbps
Interface 2
RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
Operating mode
Semi-duplex
File format/coding
UART (11/10 bit switchable; NRZ)
Data direction switching
Automatic control, min. station response time 1 bits
Transmission medium
2-wire twisted pair, shielded
Transmission length
≤ 1200 m (depends on transmission speed, bus system and cable type)
Cascadability
9 (4,8 ... 93,75 kbps)
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Protocols supported
transparent protocol
Serial transmission speed
1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 75 / 93.75 / 115.2 / 136 / 187.5 / 375 / 500 / 1500 kbps
Ambient conditions
Ambient temperature (operation)
-40°C ... 70°C
Ambient temperature (storage/transport)
-40°C ... 85°C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Altitude
5000 m (For restrictions see manufacturer's declaration)
Degree of protection
IP20
Noise immunity
EN 50 082-2
General
Electrical isolation
VCC // RS-485 (A) // RS-485 (B)
Test voltage data interface/power supply
1.5 kVrms (50 Hz, 1 min.)
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Net weight
188.8 g
Housing material
PA 6.6-FR
Color
green
MTTF
- 1808 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
- 796 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25 % (5 days a week, 12 hours a day))
- 334 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))
Conformance
CE-compliant
ATEX
II 3 G Ex nA IIC T4 Gc (Please follow the special installation instructions in the documentation!)
UL, USA/Canada
508 recognized
Noise emission
EN 50 081-1
Transmission channels
2 (1/1), TD, RD, half duplex
Bit delay
< 200 ns
Bit distortion
< 1.5 %
Test voltage data interfaces
1.5 kV AC
Test voltage data interface/power supply
1.5 kV AC
Degree of pollution
2
IECEx
Ex nA IIC T4 Gc
Bit distortion, input
max. ± 35 %
Bit distortion, output
< 3.6 %
Power supply
Nominal supply voltage
24 V AC/DC
Supply voltage range
18 V AC/DC ... 30 V AC/DC (via pluggable COMBICON screw terminal block)
Typical current consumption
90 mA (24 V DC)
Max. current consumption
100 mA
Conductor cross section flexible max.
2.50 mm²
Conductor cross section flexible min.
0.20 mm²
Conductor cross section solid max.
2.50 mm²
Conductor cross section solid min.
0.20 mm²
Max. AWG conductor cross section, flexible
12
Min. AWG conductor cross section, flexible
24
Conductor cross section AWG max.
12
Conductor cross section AWG min.
24
Dimensions
Width
22.5 mm
Height
99 mm
Depth
114.5 mm
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
Reach and RoHS Compliant
Standards and Regulations
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Free fall
In acc. with IEC 60068-2-32
Result: 1 m
Vibration resistance
In acc. with EN 60068-2-6/IEC 60068-2-6
Result: 5g, 10...150 Hz, 2.5 h, in XYZ direction
EMC Immunity
- EN 61000-4-2: Contact discharge ± 6 kV (Test Level 3)
- EN 61000-4-3: Frequency range 26 MHz ... 3 GHz (Test Level 3)
- EN 61000-4-4: Criterion B
- EN 61000-4-5: Signal ± 1 kV (Data line, asymmetrical)
- EN 55011
- EN 61000-4-6: Frequency range 0.15 MHz ... 80 MHz
Conformance
CE-compliant
ATEX
II 3 G Ex nA IIC T4 Gc
UL, USA/Canada
508 recognized
Noise emission
EN 50 081-1
Noise immunity
EN 50 082-2
Shock
In acc. with EN 60068-2-27/IEC 60068-2-27
Result: 25g, 11 ms period, half-sine shock pulse
Connection in acc. with standard
CUL
IECEx
Ex nA IIC T4 Gc
UL, USA/Canada
- Class I, Div. 2, Groups A, B, C, D
- Class I, Zone 2, AEx nA IIC T4
- Class I, Zone 2, Ex nA IIC T4 Gc X
Approvals
- UL Recognized
- cUL Recognized
- DNV
- EAC
- KC
- cULus Recognized
- UL Listed
- cUL Listed
- IECEx
- ATEX
- cULus Listed
Commercial data
Packing unit
1
Weight per piece
202.0 g
Country of origin
Germany
Application Diagrams
Anwendungen des PSM-ME-RS485/RS485-P Repeater
- Elektrische Isolation und Bussegmentierung
- Förderung der Systemverfügbarkeit
- Steigerung der Reichweite
- Erhöhung der Übertragungsgeschwindigkeit
- Erweiterung der Anzahl an Geräten
- Aufbau von gemischten und Netzwerkstrukturen
Lineares Netzwerkdiagramm
- Bis zu 32 Geräte pro Potentialsegment
- Nur Linienstrukturen
- Maximale Buskabellänge: 1200 m
- Maximale Nebenlinienlänge ohne Klemmenwiderstand: 5 m in Abhängigkeit der Übertragungsgeschwindigkeit
- Buskabelanschluss am vorderen und hinteren Ende des Buskabels
Blockschaltbild
Klicken Sie eine Artikelnummer um Bestellinformationen einzusehen.
Produktbild
Beschreibung
Netzkabel & Artikelnummer
PSM-ME-RS485/RS485-P - RS-485 Repeater. For electrical isolation and range increase in RS-485 2-wire bus systems. Connections via terminal block - requires external DC power supply
PSM-ME-RS485/RS485-P - RS-485 Repeater. For electrical isolation and range increase in RS-485 2-wire bus systems. Connections via terminal block– 24VDC USA wall power adapter included
PSM-ME-RS485/RS485-P - RS-485 Repeater. For electrical isolation and range increase in RS-485 2-wire bus systems. Connections via terminal block– 24VDC UK wall power adapter included
PSM-ME-RS485/RS485-P - RS-485 Repeater. For electrical isolation and range increase in RS-485 2-wire bus systems. Connections via terminal block– 24VDC EU wall power adapter included
